The Notes/Domino C API toolkit allows you to extend the server by writing applications called server addin tasks to perform various jobs like archiving, billing, logging, etc... Although very powerful, using the C API to write your tasks presents many challenges:
- Must be written in C/C++ which requires a high cost of entry
- Low productivity
- Can be hard to debug
- Must be compiled for every platform

This prototype proposes a new way of writing server addin tasks by using the Java OSGi programming model. This would solve all of the problems described above, but also add new benefits like:
- Declarative task scheduling
- Built-in mechanism to access server task user arguments
- List of tell commands to query the OSGi framework
- Extensibility
- Easy deployment
- Better tooling with Eclipse IDE and its first class Java and plugins editors and Java debugger
- Leverage existing OSGi assets (within the company or open source)

Here is the full documentation, here the project and here the direct download link.

OSGi itself is a Java based framework for running unit of code called bundles. It is usually associated with Eclipse, so a lot people might be surprised that it is used as a server technology. However at its core, OSGi is only a thin runtime that governs how bundles are loaded, their dependencies, how their services are exposed, etc... You can find more information about OSGi here.

Using OSGi plugins, a domino server task is defined by an extension point and a Java class, therefore, one plugin can host one or more server addin tasks, which are registered declaratively by using extension points in the plugin.xml of the OSGi plugin. Typically, one would use the Notes Java API (notes.jar) to write the server addin task business logic. However users can use their own JNI code by bundling their native code with the plugin (OSGi defines an easy way to do that ).

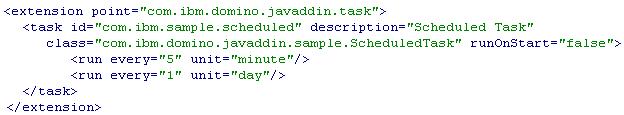

One big benefit of using this prototype is the capability for developers to schedule their task declaratively in the extension point. For example, they can specify that a task be run every X seconds. X minutes or once a day e.g.

A picture named M2

Depending on the scenario, OSGi server tasks can also be scheduled to run on startup (via the runOnStart attribute) and can also be run on demand via the "tell javaddin run <taskid>" command on the server console.

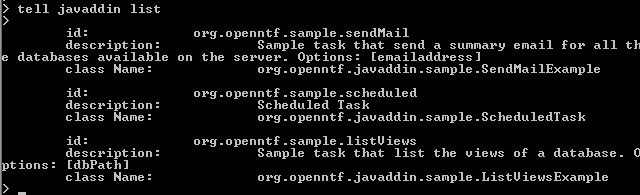

Administrator can query the OSGi framework for the list of available server tasks using the "tell javaddin list" command:

A picture named M3

For a complete list of all the javaddin commands, please consult the readme.pdf located in the distribution zip file.

For demonstration purposes, the prototype includes 3 samples server tasks:
- demonstrates how scheduled tasks can log information in a Notes Database
- run on demand task that take a file path and display the list of views for the specified database.
- run on demand task that sends a summary email for all the databases available on the server, to the address specified as argument.
